Universal and Specific Word Templates

When to use Universal vs Specific Word Templates

Use a universal template when you want to have ONE Word template for all report types. At present, UPLINX Report Tool for Amazon only supports the report type 'Amazon Connect''. Keep the tags as shown below. Use Specific Word Templates if you want to create a special template for a report type, for example to have a specific template for "Amazon Connect" insert an image into its own template.

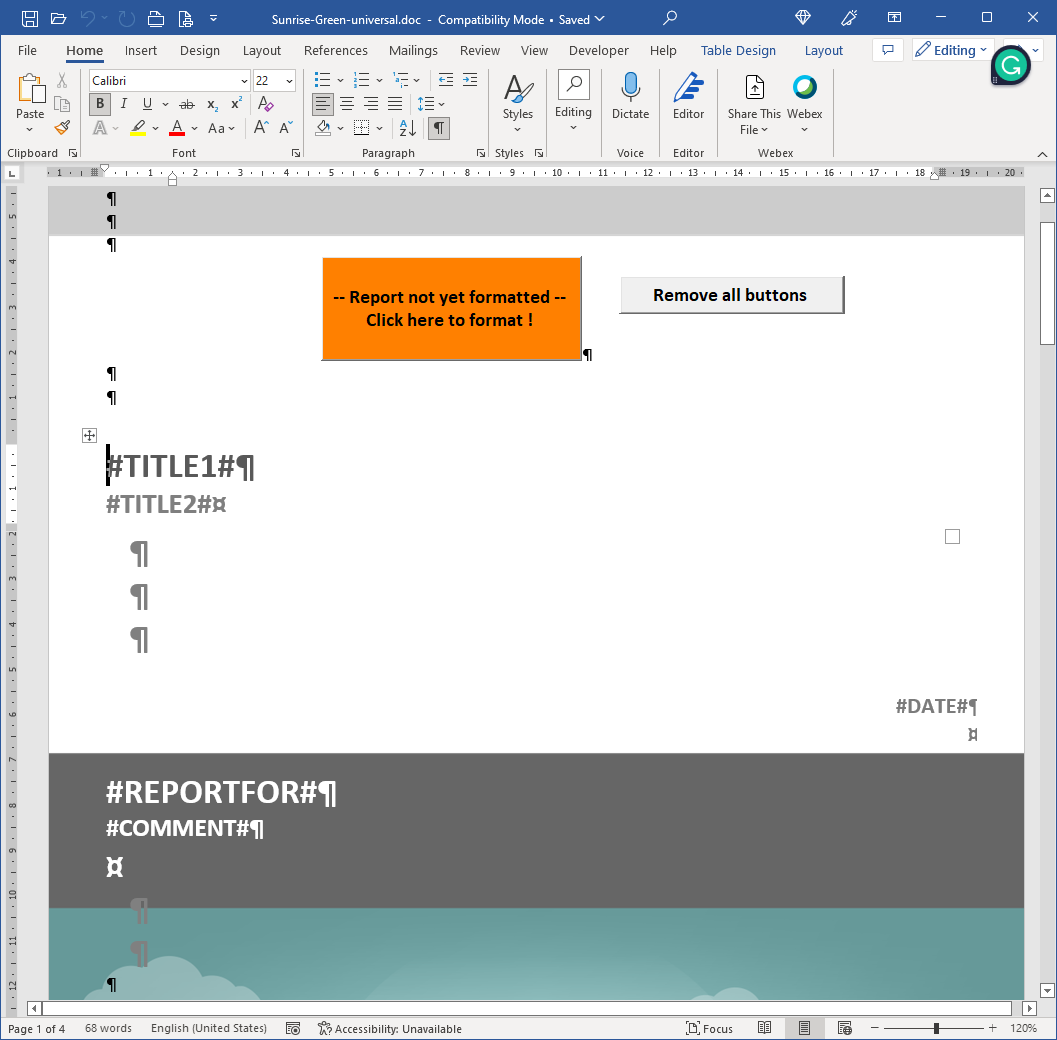

Tags in universal Word templates

The following tags will be replaced in the universal Word templates. You can also use these tags in the specific templates and your own:

#TITLE1# - This is the main title and set by the tool to the report type, that is 'Amazon Connect''. Used on the front page and in the page header.

#TITLE2# - This is the sub title and set by the tool to "Instance name / Instance ID" for 'Amazon Connect''. Used on the front page and in the page header.

#DATE# - Insert generation date. this tag appears twice int the template, once on the cover and once on the next page, in the table.

#REPORTFOR# - Replaced by the text in Report Tool for Amazon setting in 'Report for' text box. In general this is the customer name or deployment name such as Corporation XYZ or Chicago.

#COMMENT# - Replaced by the text in Report Tool for Amazon setting in 'Description' text box in the Setting tabs.

#BODY# - This is the most important tag. This is where the actual report will appear and must be present in any template.

How to set a Word template for your reports

In the Report Tool for Amazon Setting tabs, click on 'Template Settings & Preview' button and select your templates. The universal template, stored in the /universal/ folder, will appear and can be selected for each Report Type.

You can see the tag replacement steps in the progress window of Report Tool for Amazon when the Word report is generated from the main Generate Reports tab.

Location of Word Templates

The Word templates used for the reports are located in C:\Program Files\UPLINX Report Tool\templates\.

There are 2 classes of Word templates:

Universal Word templates: These are located in the folder /universal/ and can be used by all report types. Each template is used for all server types. If you require a special template setup for a specific server type, for example to include an image of phone models for a phone inventory report, then use one of the other specific templates.
Specific Templates are in each report type folder (for example CUCM, CUC, IMP etc) and there is one template per report type. This allows for specific template setup, for example to include an image of phone models for a phone inventory report.

The folders have the following structure:

\universal\: this contains the universal Word templates . Universal templates can be used for reports on any server type, so only one template is ultimately required.The UPLINX provided universal templates have -universal in the name for example xxx-universal.doc
Specific Template folders are in
- /connect/ Amazon connect specific Word templates
- ... and so on for each server type. To adapt the templates to your own design, see Customizing Your Own Report Templates
